In this tutorial, you’re going to learn how to replace the bathtub in your bathroom step by step.
You’ll learn how to remove your old alcove bathtub, how to choose a new bathtub, and how to hook up the plumbing and install your new bathtub WITHOUT having to access the plumbing from underneath.
The links below are affiliate links. That means I receive a small commission if you click on them and buy (which I really appreciate). This does not cost you anything additional and it allows me to put out more free information like this.
Materials Required:

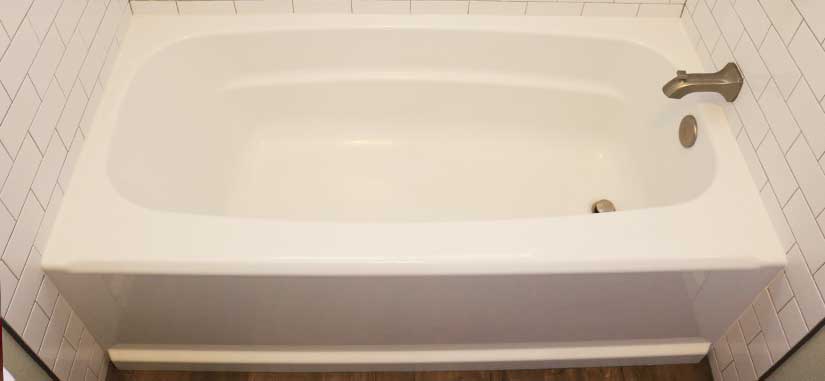

- Bathtub (I used the Delta Classic 400 Tub in White)
- Bathtub Drain Assembly
- ABS Glue
- Additional ABS plumbing fittings to attach to house plumbing
- Floor Leveling Compound
- DAP Kitchen, Bath, and Plumbing Silicone Sealant
- 1 5/8″ Pan Head screws
- Shims
Tools Required
- Tub Drain Remover
- Level
- 12″ Finishing Trowel
- Cordless Drill
- Caulking Gun
- Saw (Hacksaw, miter saw, or circular saw)
- Reciprocating Saw
- Drill Bits
Step #1 – Removing Your Existing Bathtub
To remove your existing bathtub, you’ll first want to remove the tub surround or the tile around the bathtub. Without doing this, you won’t be able to pull the old tub out or install the new tub.
Once the entire tub is exposed, you’ll probably find some nails or screws securing the tub to the wall. Remove those.

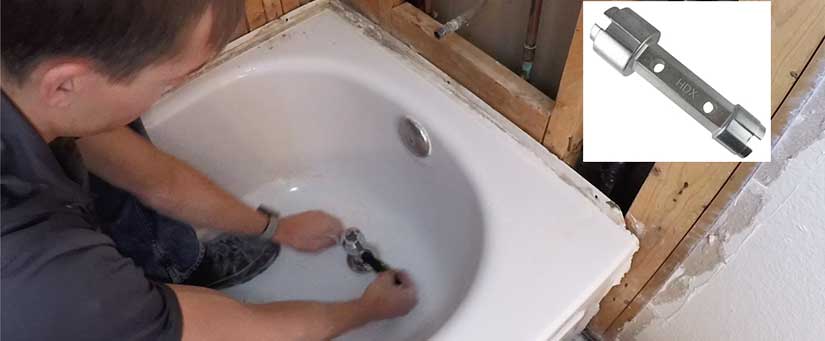

Now it’s time to disconnect the plumbing. Start by removing the drain stop by simply unscrewing it. Then, take a tub drain remover, insert it into the drain, and twist it out counter-clockwise. You may need to insert a screwdriver for more leverage. Then, take a screwdriver and remove the cover plate from the overflow drain.

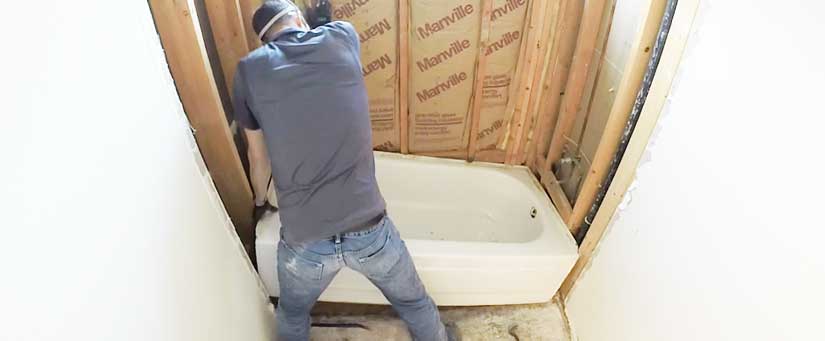

You’re not quite ready to remove the tub yet, however. First, you’ll need to remove the 2×4 stud on the side of the tub opposite of the drain that the side tub flange was attached to (see the video for more detail). Then, you can lift out the tub by lifting the side opposite of the drain and then pulling the tub out at an angle.
Step #2 – Prep For the New Tub
Bathtubs need to be installed so they have solid, consistent support, and they need to be level.

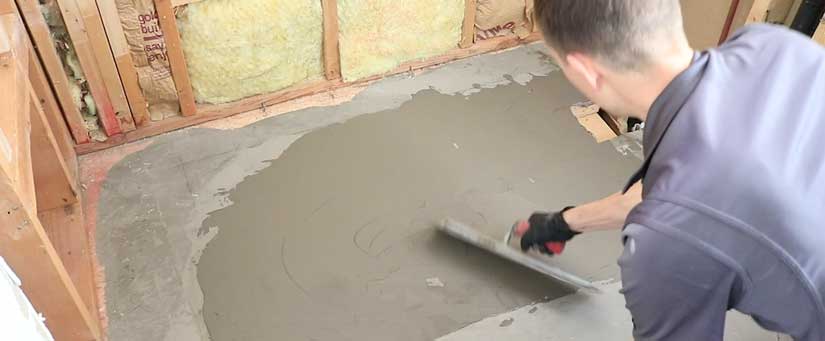

If you’re installing a new acrylic or fiberglass tub, it probably has a plastic base used to support the base of the tub. If so, then you’ll need to make sure your floor is flat and level – otherwise, your tub will drain improperly, or it could creak and crack when you step in it. Use a floor leveling compound such as the one listed above in the materials list to level the floor.
If you’re installing a cast iron tub, then you don’t have to worry about leveling the floor because you’ll be pouring a bed of mortar to set the tub in. However, you will want to screw some 2×4’s to the wall to support the tub’s rim if you’re using a bed of mortar.

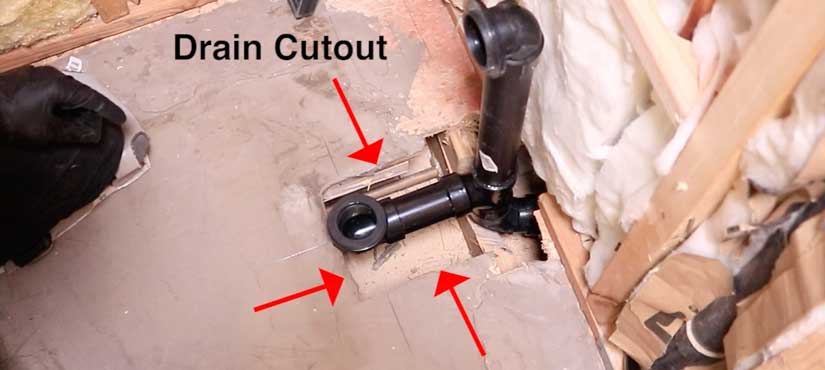

Also, make sure the drain cutout on the floor is the appropriate size for your tub according to the specifications that came with your new tub.
Step #3 – Assemble the Bathtub Drain Assembly
This is the fun part, especially if you liked building legos or models when you were a kid.
Lay the bathtub on its side so you can easily access the drain holes from underneath and from the top.

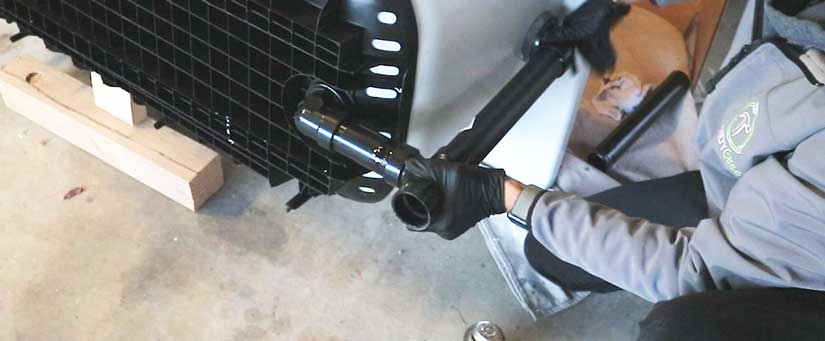

Then, take a drain assembly (sold in kits) and start by attaching the drain and the overflow drain to the bathtub. When connecting the drain, the rubber gasket goes between the drain elbow and the bathtub – not on top of the bathtub.
Now that the drains are connected to the tub, cut the ABS pipes to the correct length and glue the drain assembly together using ABS glue. Make sure the connections are in the right direction so the water can drain properly.
Now, remove the finished drain assembly from the bathtub.
Step #4 – Connect the Drain Assembly To the House Plumbing

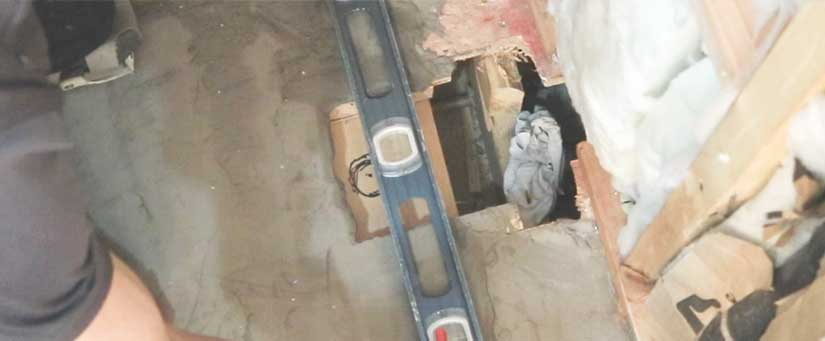

The key here is to get the drain assembly to line up where the bathtub will be before permanently installing the bathtub. To do that, you’ll need to set the tub in place, mark where the drain is on the floor or on a temporary piece of wood, and measure the distance between the floor and the bottom of the drain. Basically, you need to know the exact location of the drain after the final installation.
I demonstrate how to do this in the video at the top of this page. It needs to line up perfectly. Otherwise, it will be impossible to make a water-tight connection.
However, if you have easy access underneath the bathtub, it may be easier to first connect the drain assembly to the tub, install the tub, and connect the plumbing to the house as a final step.
Step #5 – Set the Bathtub

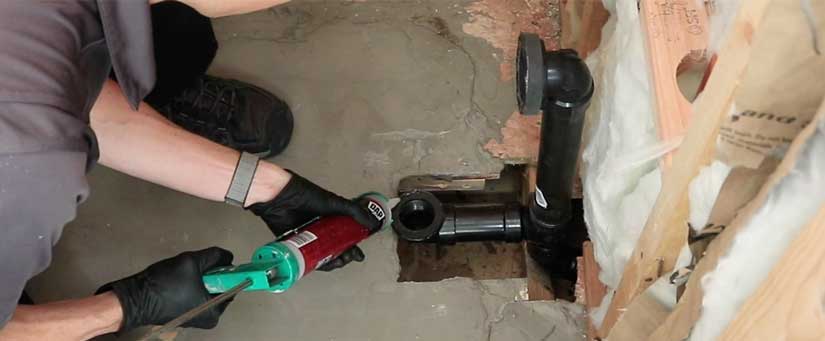

Now that the drain assembly is in place, apply silicone to both sides of each drain gasket. Then, slowly lower the bathtub into place, being careful not to smear the silicone sealant.

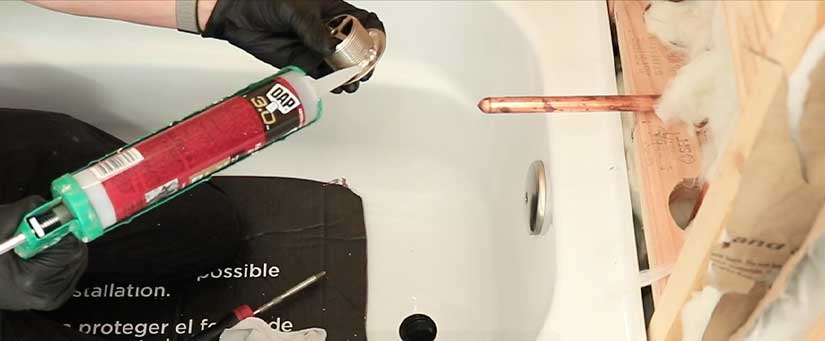

Then, put another large bead of silicone on the underside of the drain flange and then screw in the drain to the threaded elbow. Then put on the cover plate for the overflow drain. Wipe away any excess silicone before moving on.
Step #6 – Secure the Bathtub

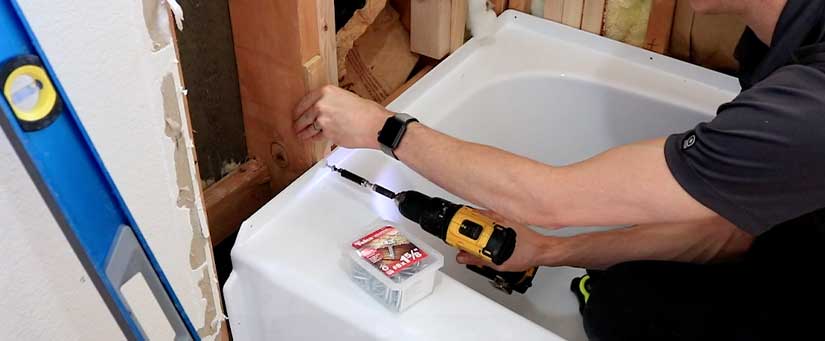

Now that the tub is in place, re-install the 2×4 stud that you removed earlier to remove the old tub. Then, using 1 5/8″ lathe screws, secure the bathtub to the stud – one screw at each stud location and 2 -3 on the side tub flanges.
You’ll want to pre-drill the screw holes in the tub using a 3/16″ drill bit before screwing in the tub. And, make sure to use wood shims between the tub and the wall wherever there is a gap to avoid snapping the tub flange.
Step #7 – Test for leaks

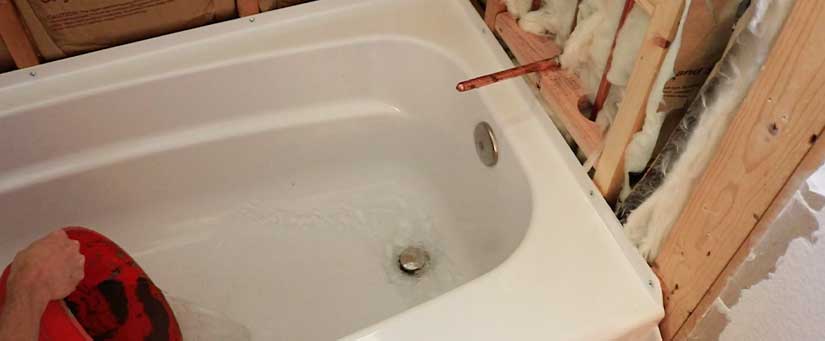

Before installing tile or any finish material around the tub, you’ll want to make sure it isn’t leaking. So, wait about 24hrs for the silicone sealant to set, then fill the tub with water and listen carefully for leaks. If there is a leak, you’ll probably hear a faint dripping sound. If there is a floor below the bathtub, go there and listen for leaks and observe the ceiling for signs of water.
Step #8 – Caulk the Front Edge of the Tub

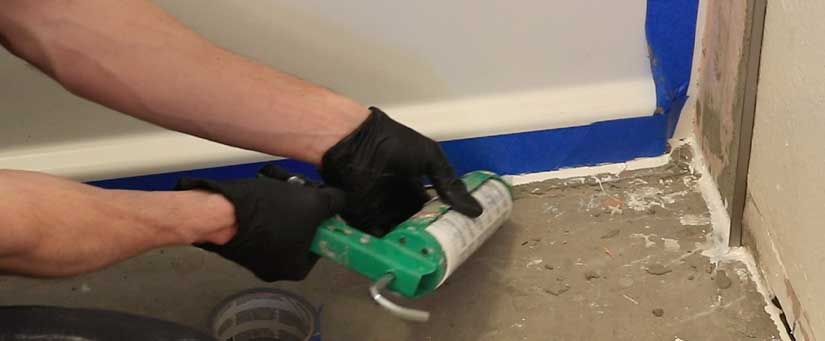

If there are no leaks, you’re almost done. Now, using a silicone sealant that matches the color of your tub, caulk the front edge of the bathtub where it meets the ground. This is to keep water that drips over the front edge of the tub from getting underneath the bathtub and causing mold growth.
And that’s it!
